UPC : 0 27077 08115 2  •   Case Weight : 19.2 lbs  •   Cu Ft : 1.30   •   Case Qty : 1

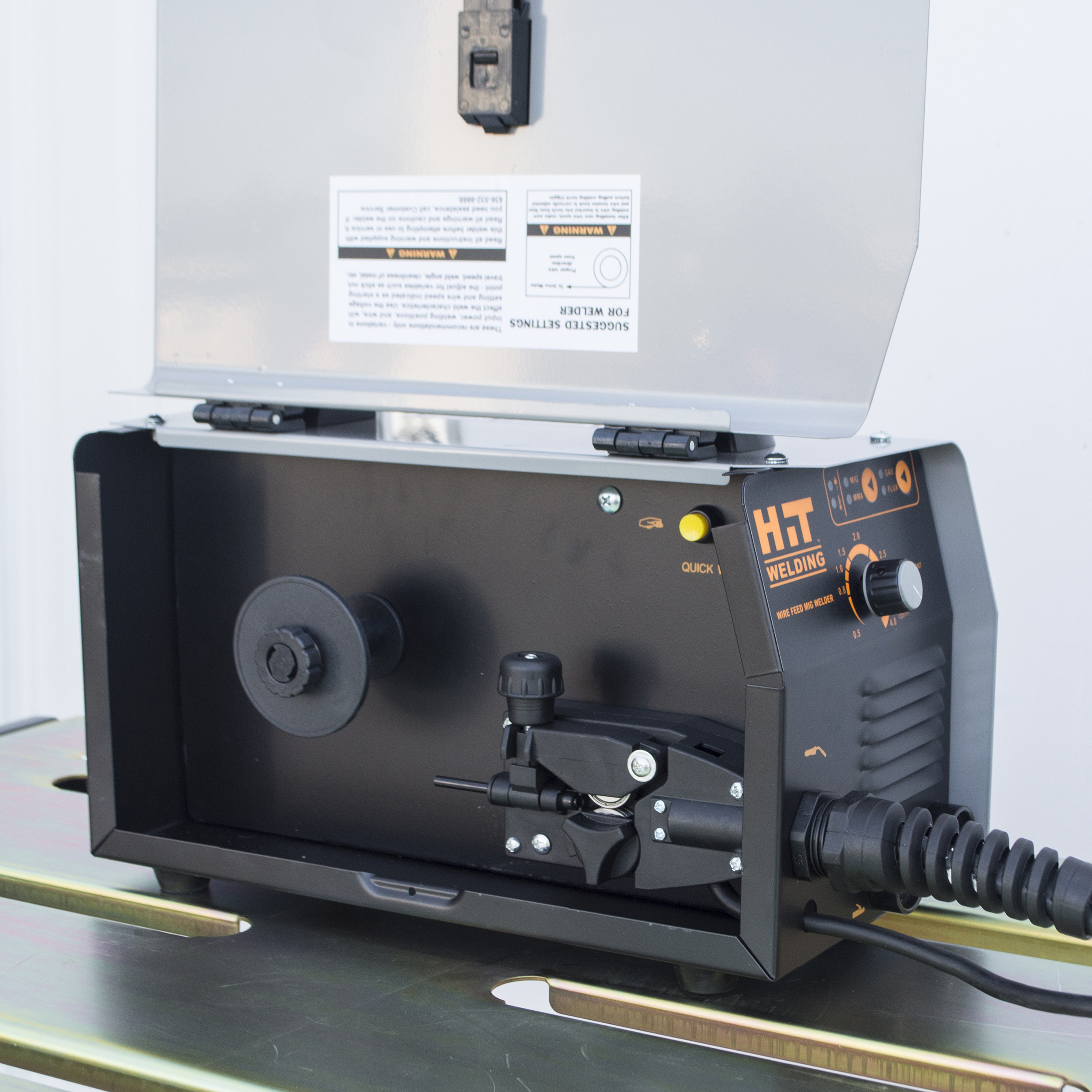

• Wire Feed
• Power Supply 1 Phase - 120V - 60HZ
• No-load Voltage: 62V
• Output Range: MIG 30-80A/MMA 20-70A
• Duty Cycle: MIG 80A@30% / MMA 70A@30%
• Suggested Wire: Solid and Flux Cored Wire
• Suitable electrode size: 1/16"-5/64"
• Use with Gas or Without Shielding Gas
• Welds Carbon Steel Between 1.2mm-3.0mm
• Overload & Thermal Protection

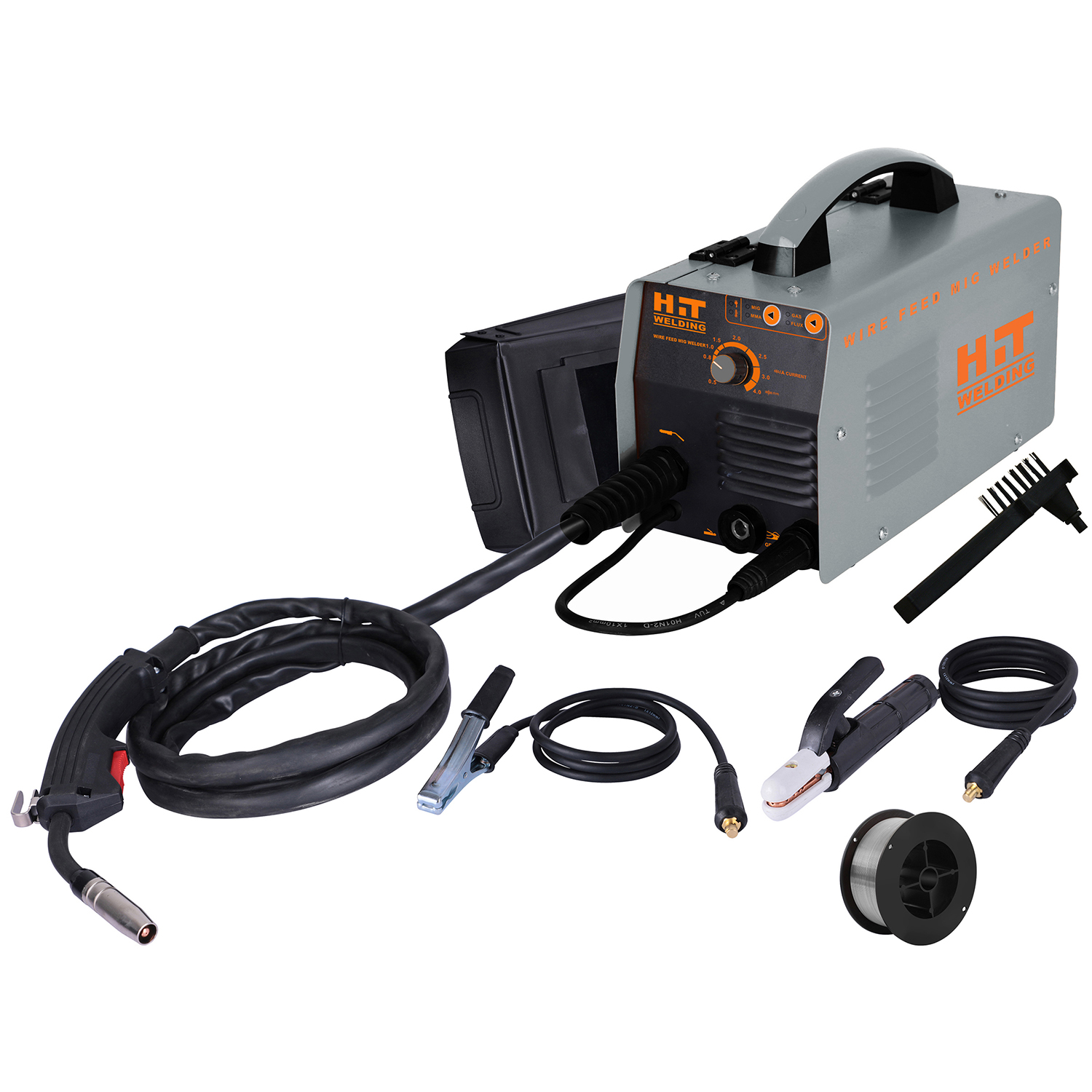

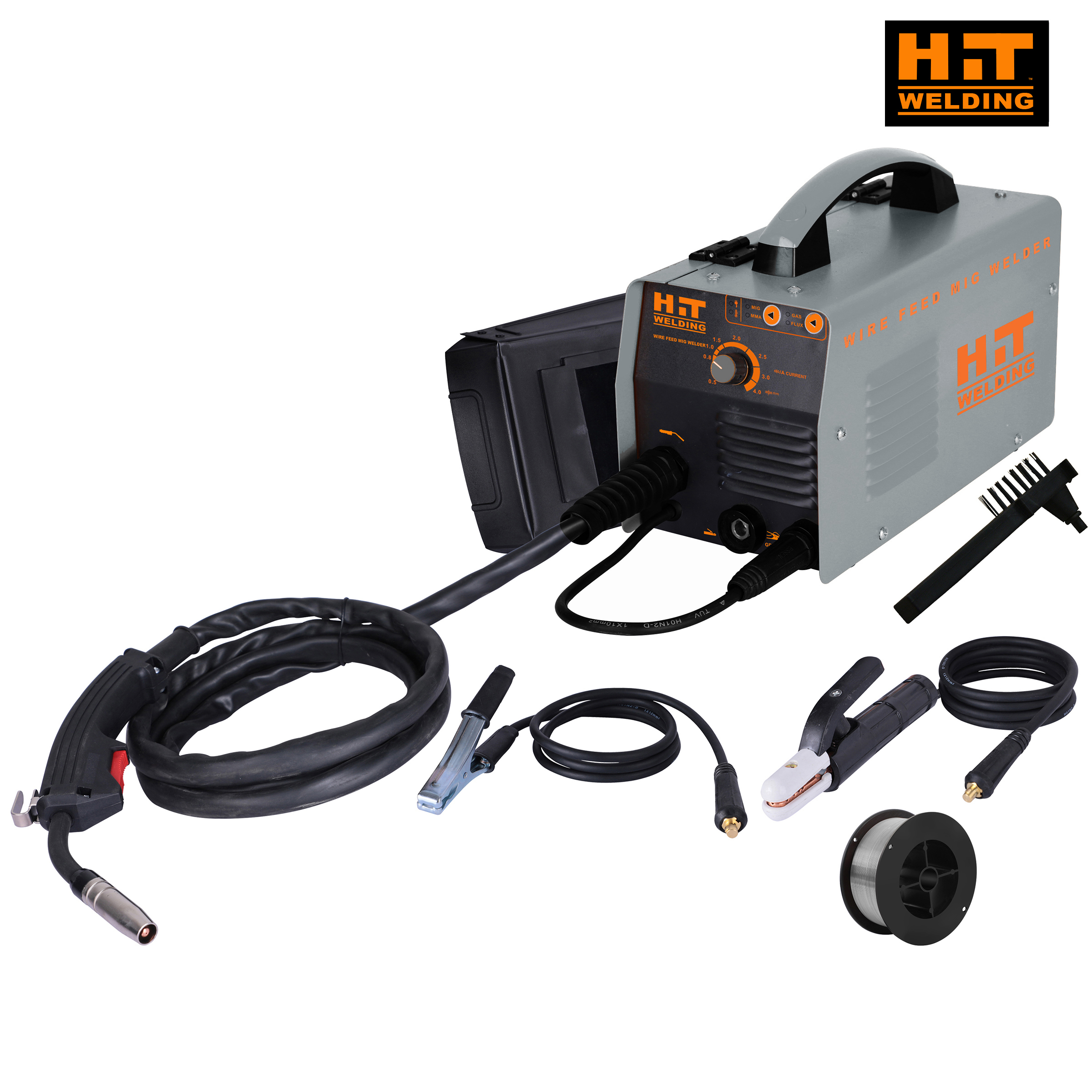

• Includes Welding Cable & Electrode Holder, MIG Torch,

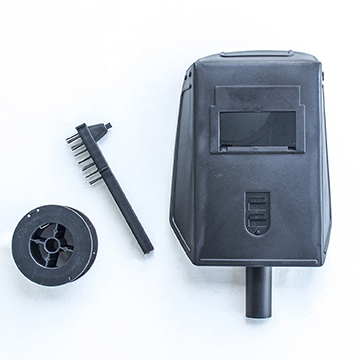

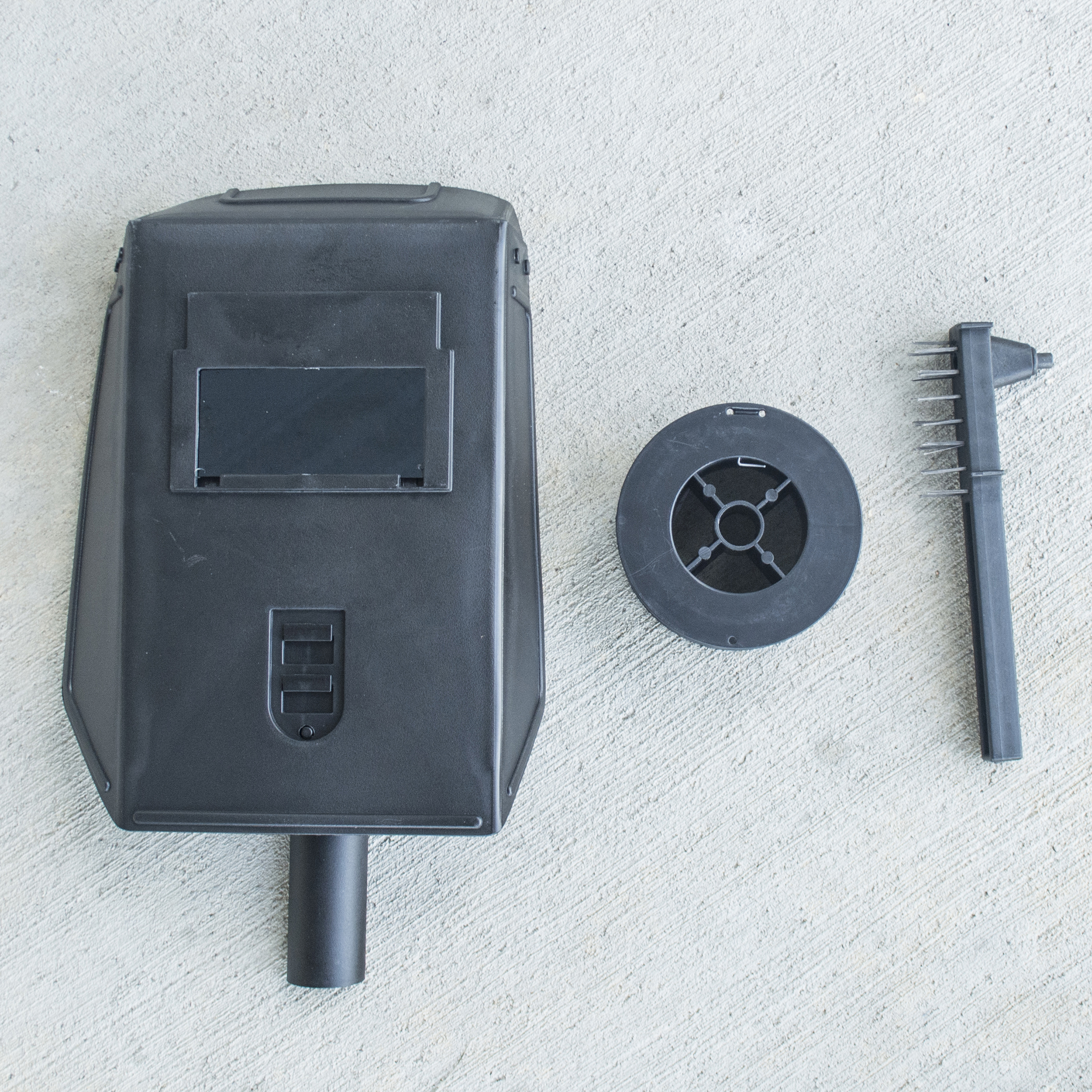

• Grounding Cable & Earth Clamp, Wire Spool, Clipping Hammer / Brush, & Welding Face Shield
• Welding Material: Carbon Steel, Stainless Steel, Aluminum, etc.
• The power knob supplies electrical current to the welder.

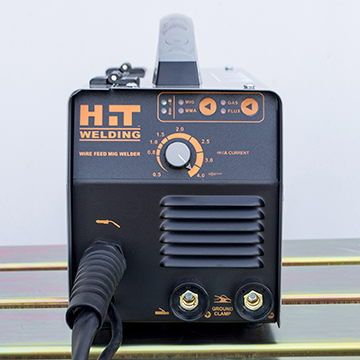

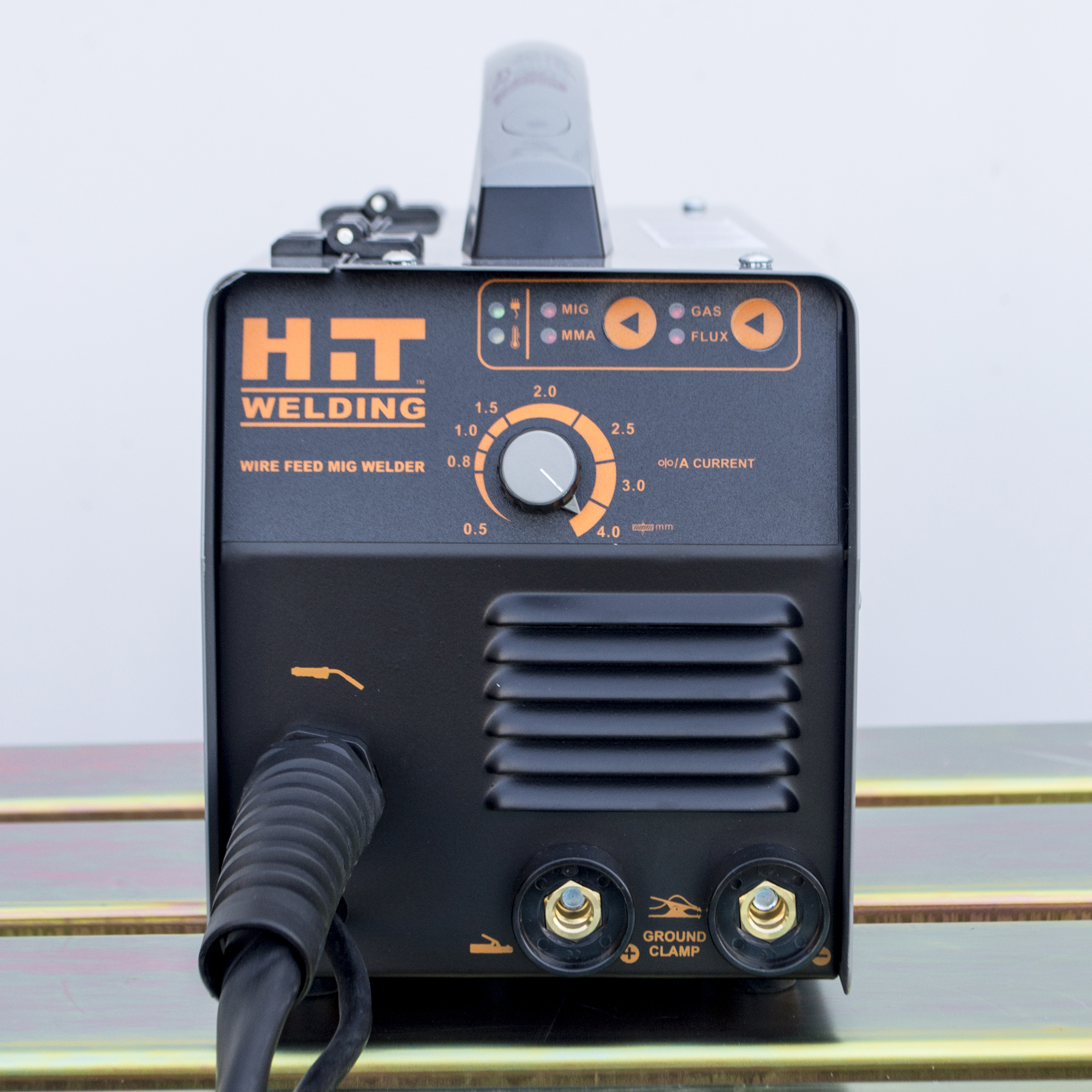

• One knob controls the wire feed, output current and output voltage.

• Power Cord = 6.5 Ft
• Earth Clamp + Cable = 5 Ft
• MIG Torch + Cable = 6.25 Ft
• Welding Holder + Cable = 6.5 Ft
• Maximum Wire Speed: 2~15m/min
• Output Current Mode: Synergic mode (outout current/output volt/wire speed 3 in 1 knob ) and stepless adjusting .
